Chiron
Stereo VCA / Envelope Generator
US$199.00
Checking stock
We'll write back to arrange shipping and payment with you.
Or write to support@letsplaysynth.com

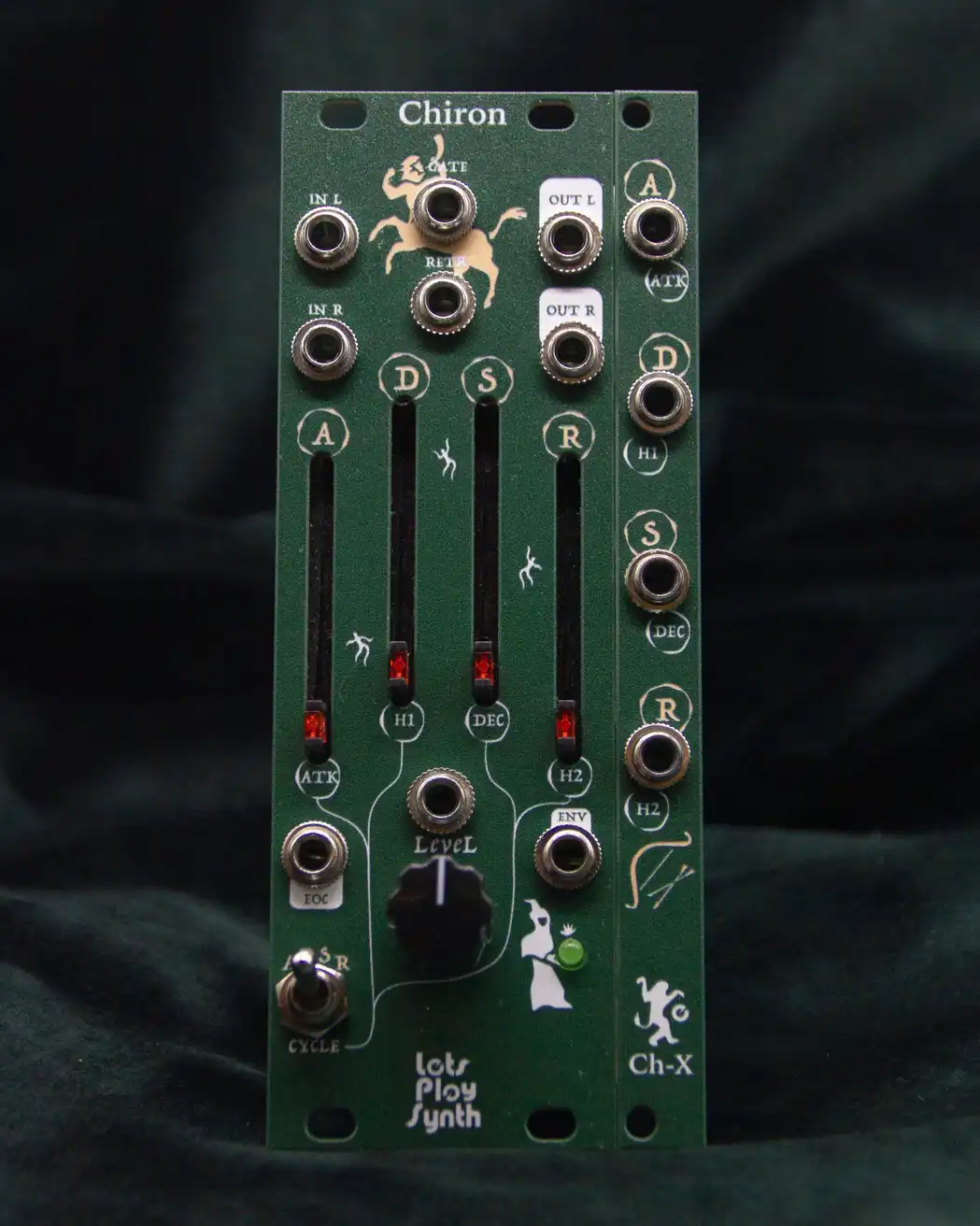

Chiron is an envelope generator and a stereo VCA on one 8HP panel. It shapes how each note begins and ends, so an oscillator and a gate are all you need for a finished note.
The envelope has two modes. In ADSR mode it follows the classic attack–decay–sustain–release shape. In Cycle mode the same four sliders turn Chiron into a looping function generator (attack, hold, fall, hold) that runs on its own or restarts on incoming gates. The VCA can raise the signal to twice its input level, and a soft limiter rounds off the peaks. The 2HP Ch-X expander, included, adds a CV input for each of the four sliders.
Features
- ADSR envelope with analogue-style curves, 1ms to 60s per stage
- Looping four-stage Cycle mode (attack, hold, fall, hold) from 4ms (250Hz) to 4 minutes
- Hard reset on GATE and soft reset on RETR, with no jumps on retrigger
- Stereo VCA with up to +6dB of drive and soft limiting
- ENV output up to +5V and EOC trigger at the end of every envelope
- Per-stage CV control via the Ch-X expander
- Envelope out as a USB-MIDI controller
- Slider LEDs show the running stage; ENV LED shows the envelope level
Specifications
- Panel width
- 8 + 2 HP
- Depth
- 35 mm
- Current draw +12 V
- 55 mA
- Current draw −12 V
- 30 mA
