Genesis
Stereo Wavetable Oscillator
US$309.00
Checking stock
We'll write back to arrange shipping and payment with you.
Or write to support@letsplaysynth.com

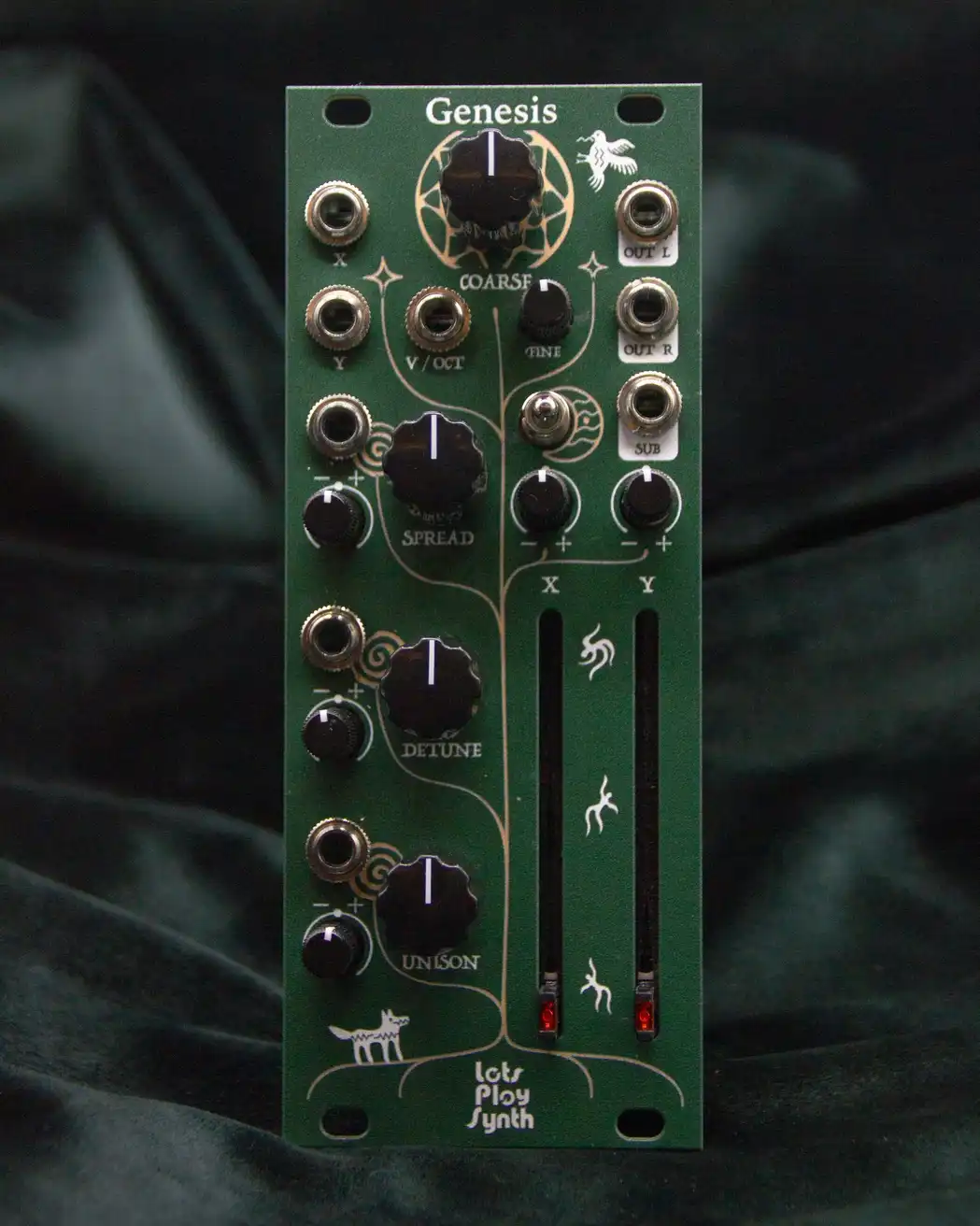

Genesis is a stereo wavetable oscillator in 10HP. You shape its tone in two dimensions: the X slider morphs across the waveforms of a bank, and the Y slider moves through four banks, from simple, dark tones to complex, bright ones. Over USB-C you can replace the factory set with your own waveforms.
Four oscillators run inside at once. DETUNE pulls a pair of them apart in pitch, UNISON blends them in, and SPREAD widens the result across the stereo field, so a single oscillator can sound like a whole section. Add a square sub-oscillator down to two octaves below, and a CV input with attenuverter on every tone control, and one module covers a lot of ground in a small system.
Features
- Two-dimensional wavetable morphing with X and Y sliders
- Four banks of up to four waveforms, from simple and dark to complex and bright
- Load your own wavetables and firmware updates over USB-C
- Four-voice unison with DETUNE and SPREAD
- Stereo output with adjustable phase spread
- Square-wave sub-oscillator at 0, −1 or −2 octaves
- CV input with attenuverter for X, Y, DETUNE, UNISON and SPREAD
- 1V/oct tracking over five octaves, with FINE tuning up to +2 semitones
- Firmware updates over USB-C
Specifications
- Panel width
- 10 HP
- Depth
- 35 mm
- Current draw +12 V
- 70 mA
- Current draw −12 V
- 30 mA
